MO-104D 2/3/4 Thread Overlock with Differential Feed and Rolled Hem
MO-104D 2/3/4 Thread Overlock with Differential Feed and Rolled Hem
Couldn't load pickup availability
The compact, robust, and easy-to-operate JUKI MO-104D is an ideal complement to your sewing machine. Whether you are working with the finest silk and satin, denim, thick fleece, or stretchy fabrics, the MO-104D will give you the sewing results you’ve always dreamed of. Additionally, the MO-104D’s 2-, 3-, and 4-thread option allows for narrow and hard-wearing seams on stretch and woven fabrics.
Expanding in your projects is always exciting, and without MO-104D, we’ve created the perfect assistant to your sewing needs. This machine is ideal for beginners and experts alike with its versatility in fabric handling and easy-to-use features! Providing tools that make creating your project easier and faster, the MO-104D is a great tool to keep in hand.
Scroll down for a full list of features, specifications, and standard accessories.
Features
- Up to 15 Stitch Variations: Choose from 15 overlocking stitch variations with 2-, 3- and 4-thread stitch patterns for all types of fabrics.
- Differential Feeds: Adjustable stitch length by simply turning the exterior dial on the right hand side.
- Wide Variety of Stitch Patterns: Sew both stretchy and knit fabrics with the 2/3/4 thread overlock with chain stitch and cover stitch, 3-thread narrow overlock, and 3-thread rolled hem.
- Adjustable Stitch Length: Change the length of your stitch according to your project by simply turning the dial located on the exterior right hand side within the range of 1 to 4mm.

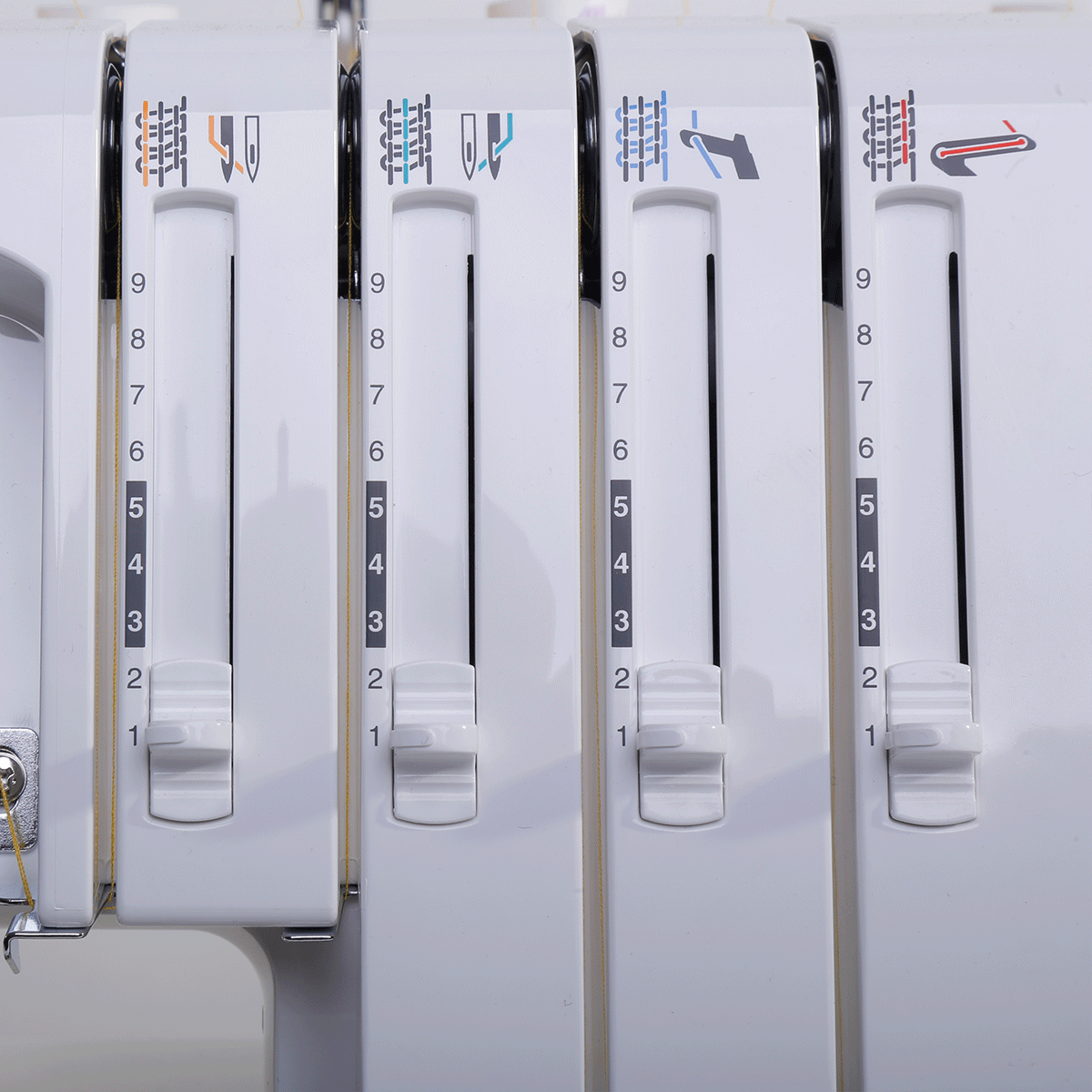

- Lay-In Tension Slots: Thread easily and efficiently by following the color coded thread paths on the tension slots.
- Lower Looper Threader: Slide the thread into the slot and snap the looper into place allowing for easy threading in seconds!
- Automatic Rolled Hemming: Create quick and easy with built-in fingertip control.
- Presser Foot Pressure Adjustment: Ability to adjust the presser foot pressure according to the type of material being sewn.

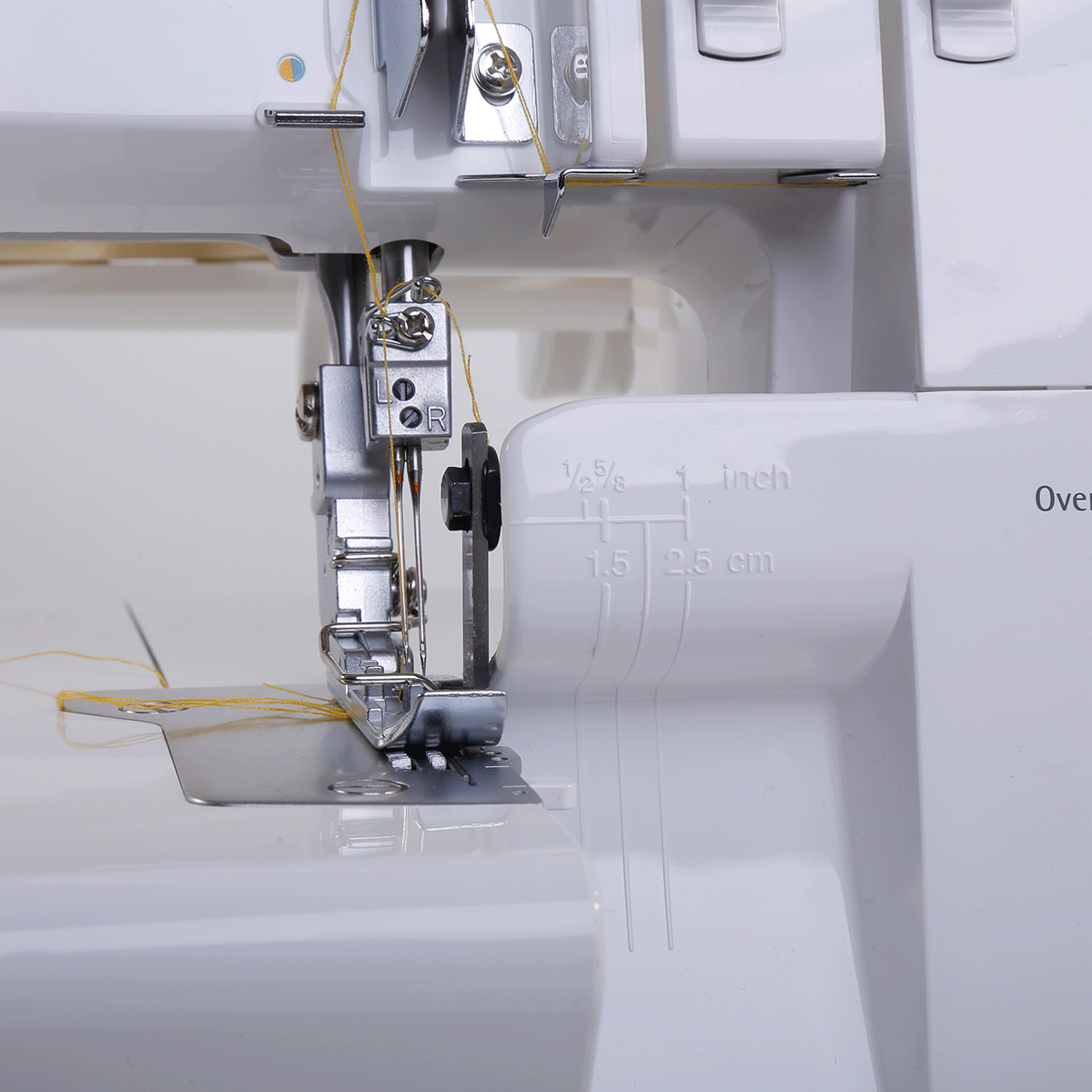

- Cutting Width: Create perfect seams and rolled edges by adjusting the cutting width with ease.
- Bright LED Light: Brightens the needle entry area. The LED light will not heat up even during long hours of operation.
Specifications
- Needle Type: SCHMETZ 130R / 705H NM 70,80,90
- Number of Threads: 2/3/4 Threads
- Maximum Stitch Speed: 1,500 spm
- Max. Stitch Length: 0.2" (4mm)
- Max Overlock Width: 0.3" (7mm)
- Presser Foot Lift: 0.2" (5mm)
- Adjustable Foot Pressure: Manual
- Differential Feed: 0.7-2.0 ratio
- Upper Looper Converter
- Machine Weight: 19.51 pounds
Accessories
- Standard Presser Foot
- Vinyl Dust Cover
- Spool Holder Discs (4 pcs)
- Screwdriver (small)
- Screwdriver (medium)
- Loop Threader
- Tweezers
- Oiler
- Lower Knife
- Needle Set
- Foot Control
- Accessory Bag
Optional Accessories
- Beading Presser Foot
- Blind Stitch Presser Foot
- Cording Presser Foot
- Curved Beading
- Elasticator Presser Foot
- Gathering Presser Foot
- Piping Presser Foot
- Taping Foot
- Universal Blind Stitch
- Upper Looper Converter
- Waste Collector
MO Series 8 Foot Kit
- Gathering
- Elasticator
- Blind Stitch
- Piping
- Cording
- Blind Hem/Guide
- Beading
- Curve Pearl
MO Series 6 Foot Kit
- Gathering
- Elasticator
- Blind Stitch
- Piping
- Cording
- Beading
MO Series 3 Foot Kit
- Elasticator
- Blind Stitch
- Cording
